Encode egXMLs

We often include strings of XML in documentation as examples to illustrate processes or concepts. Use the


                                       <egXML>

element to tag sample XML code. Do not use


                                       <egXML>

to tag non-XML code; use the


                                       <eg>

element instead.

Use the


                                       <egXML>

element only to wrap sample XML outside of the context of a paragraph (running text). Do not wrap XML that appears in running text in the


                                       <egXML>

element; use the


                                       <gi>


                                       <att>

, and


                                       <val>

elements instead to tag the elements, attributes, and values mentioned in running text. The


                                       <egXML>

element is strictly used for examples that are separate from running text.

Namespace for egXMLs

The


                                          <egXML>

element has its own namespace. Give the


                                          <egXML>

element the


                                       @xmlns

attribute and the value "http://www.tei-c.org/ns/Examples". Typing


                                          <egXML>

in Oxygen will generate a drop-down menu from which you can select the element with the


                                       @xmlns

attribute and this value already added. This namespace ensures that the content of the example is validated by a special process (if the sample has the


                                       @valid

value of "true"; see Validity of Sample XML).

Validity of Sample XML

All


                                          <egXML>

elements must have the


                                       @valid

attribute. Allowed values are "true" and "false". Unlike the tei-all.rng schema, the LEMDO schema does not allow the "feasible" value. Examples are "true" if they are complete and valid. Examples are "false" if they are deliberately incomplete. Avoid creating counter-examples or negative examples.

Occasionally, our sample XML is left incomplete so that we can demonstrate an aspect of encoding procedure without cluttering up the example with other intersecting procedures. See the principle of Economy of Example. Such sample XML must be given the


                                       @valid

value of "false" to avoid misleading the user.

Use the value "true" only if you are absolutely sure that the sample XML is complete and valid according to the schema rules for the type of document in which it is meant to be used. See Validity of Example.

The LEMDO build process will validate code wrapped in the


                                          <egXML>

element if the


                                       @valid

attribute has the value "true". This system will extract sample XML into a separate file and validate it against our schema, breaking if an example that has the value of "true" is invalid. In order for the system to work, all deliberately incomplete code must be tagged as "false" so the system does not attempt to validate it. These values will also allow us to render incomplete code differently from complete, valid code on the LEMDO site. In order to be valid, an example must have a single root element which is a direct child of the


                                          <egXML>

element.

All


                                          <egXML>

s with the "true" value are validated during the build process. If they are not valid, they will break the build. They cannot be validated using our normal schema because they are in a different namespace.

If you want to check all your


                                          <egXML>

s before you commit a file, run the following command in your Terminal: ant validateEgXMLs. You will have to have ant commands installed if you are working on your own computer. Ant commands will work on all the HCMC workstations.

Omission of Material from Sample XML

In many cases, we want to indicate that the parent element in the sample XML would normally have additional child elements. For example, if


                                          <list>

is the parent, one would normally have multiple child


                                          <item>

elements. If


                                          <listPerson>

is the parent element, one would normally have multiple child


                                          <person>

elements. In these cases, we normally give just one sample child element but include a commented-out ellipsis before and after this child element:

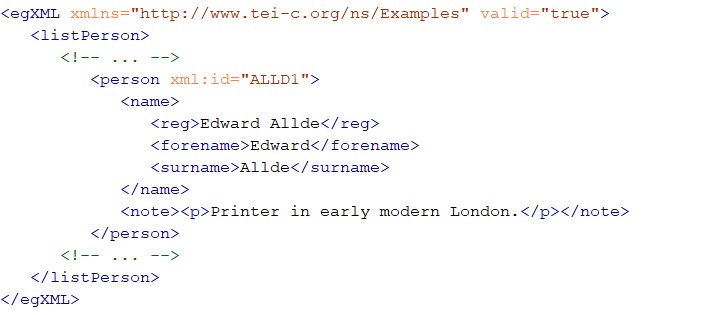

An egXML element with http://www.tei-c.org/ns/Examples as the value on the xmlns attribute and true as the value on valid. In the egXML text node is a listPerson with one child person element that has the children name with child reg, forename, and surname elements and note with a child p element.

Showing Examples of `<egXML>` Elements

The


                                          <egXML>

element itself cannot be wrapped in another


                                          <egXML>

element. In this present documentation file, where we need to give examples of


                                          <egXML>

, we have had to do a screen capture from Oxygen and insert a .jpg in the file. (Yes, writing documentation about writing documentation gets very meta. The TEI Guidelines have the same problem, so we are not alone.) For guidelines on storing and linking images, see Add Images to the Repository.

Counter-Examples and Negative Examples

Do not wrap deliberately wrong examples in


                                          <egXML>

. Use the


                                          <eg>

element in those rare cases where you want to give an example of something that needs to be remediated after the conversion. Thus far (in 2021), we give negative examples mainly in the Appendix on Remediation.

Rendering Considerations

Anything tagged with


                                          <egXML>

is rendered as an indented block with the default colours that Oxygen uses for elements (blue), attributes (orange), values (brown), and text nodes (black). We have added a background colour (currently light grey) to make the sample XML highly distinct.

This rendering means that you will not want to use


                                          <egXML>

for short examples in running prose. It also means that you may want to include enough running prose from your sample to make the sample encoding make sense.

For example, if you wanted to demonstrate how to use the


                                          <quote>

element in a note, give enough of the note text for the example to make sense (the actual note by David Bevington is longer):

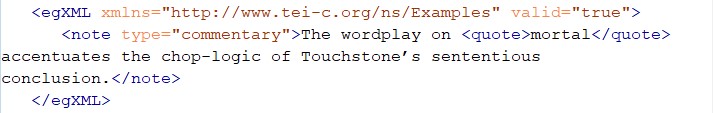

An egXML element with http://www.tei-c.org/ns/Examples as the value on the xmlns attribute and true as the value on valid. In the egXML text node is a note element with commentary as the value on the type attribute.

Note that white space and carriage returns within the text nodes of elements affect the rendering of the contents of


                                          <egXML>

elements, unlike most other elements. Delete extra white space or carriage returns in the text nodes of


                                          <egXML>

elements so the examples render correctly.
